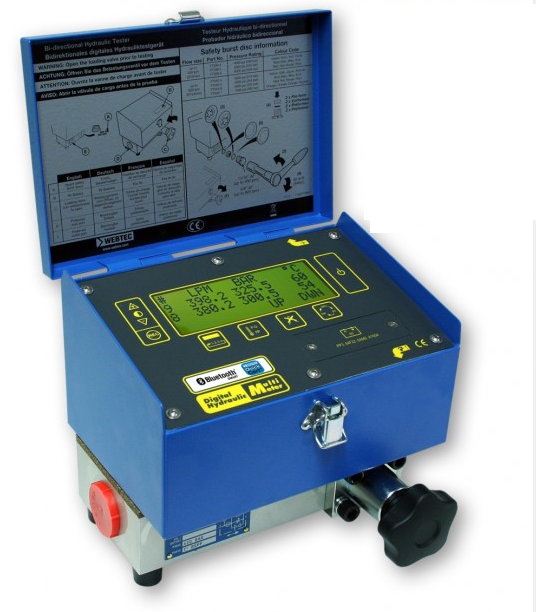

DHM 4 Series Digital Hydraulic Multimeter

Measure Flow, Pressure, Peak Pressure, Temperature, Power and Volumetric Efficiency.
Record Data & Wireless Transfer

Up To:

• 800 lpm, 210 US gpm
• 480 bar, 7000 psi

Features:

• PRODUCE an electronic report for immediate email to the customer
• FLOW 10-800 lpm, 2.5-210 US gpm
• PRESSURE 480 bar, 7000 psi
• PEAK PRESSURE capture at 1000 times/s
• ACCURATE measurements and FAST response bar graphs to aid diagnosis.
• BUILT-IN loading valve.
• BI-DIRECTIONAL operation.
• INTERNAL oil by-pass protects the meter and system against overpressure.
• AUTOMATIC calculation of hydraulic power and volumetric efficiency.
• RECORD data to robust, non-volatile memory.
• PORTABLE, robust and sealed to IP54.
