LARGE TRACTOR SPLITTING SYSTEM :: AT31000
$10,296.45

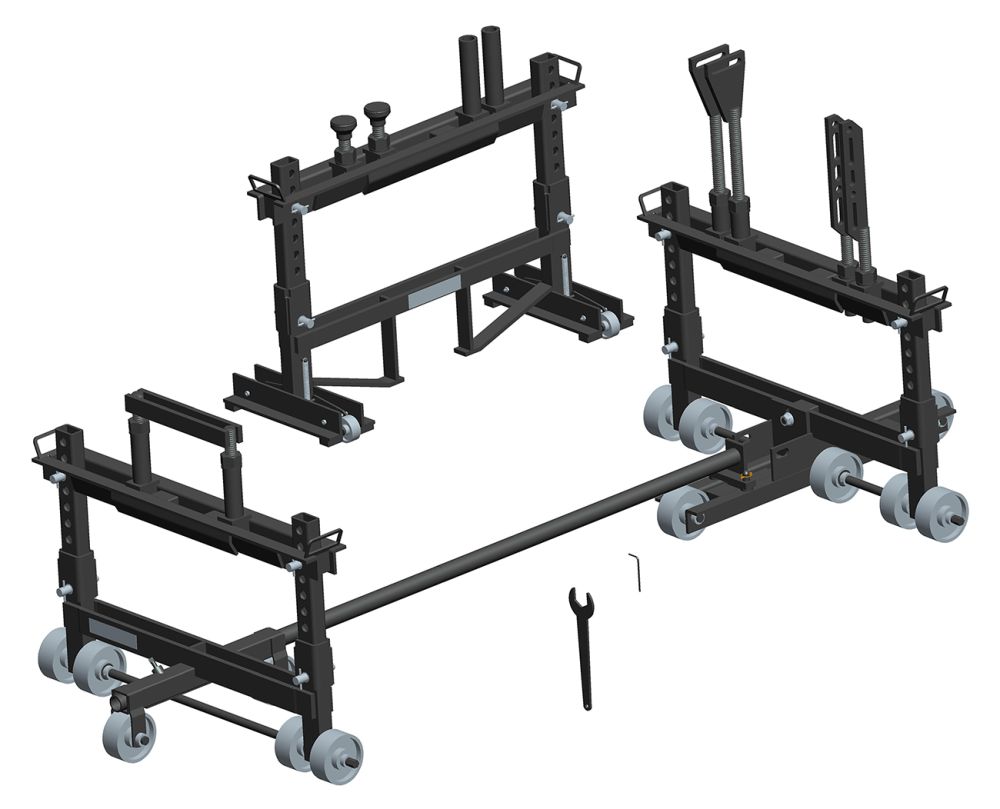

The AT31000 Tractor Splitting Stand System frame is built from heavy gauge steel and uses heavy duty steel wheels to provide easy maneuverability around the shop.
- Now CE Certified!
- Built specifically for today's heavy 2WD tractors
- Designed to be installed and used by one person
- Allows the tractor to be split without having to remove the front tractor weights.
In Stock: Ships LTL within 5 Business Days
SKU
AT31000
Split Large Tractors in a Safe and Efficient Manner
The AT31000 Tractor Splitting Stand frame is built from heavy gauge steel and uses heavy duty steel wheels to provide easy maneuverability around the shop. It will adjust from a low position of 14.85" to a high position of 39.25".
FEATURES
- Now CE certified!
- Built specifically for today's larger tractors that are two wheel drive and front wheel assist in the 110-450hp range. It is universal so it could possibly be used on larger and/or smaller tractors as well. Should not be used for center pivot or articulated steering tractors (e.g. Case IH Steiger models).
- Designed to be installed and used by one person
- Allows the tractor to be split without having to remove the front tractor weights.
- Rolls easily over uneven floors and normal shop debris due to large, heavy construction steel wheels
- Installs quickly and height is easily adjustable with quick pull pins
- Includes a large wrench for fine height adjustment of attachments
- Does not require a Track System
Replacement Parts / Accessories
| Part # | Description | Qty |
|---|---|---|
| AT31001 | Fold Down Splitting Stand | 1 |
| AT31002 | Stationary Stand | 1 |
| AT31003 | Counter Balance Attachment Stand | 1 |
| AT31004 | Side Mounting Plate Attachment | 1 |
| AT31005 | Jack Plate Attachment | 1 |
| AT31006 | Euro Cradle Attachment | 1 |
| AT31007 | Extension Jack Blocks | 2 |
| AT31008 | Washer | 6 |
| AT31009 | Jack Block | 4 |
| AT31010 | Pin | 1 |
| AT31011 | Wrench | 1 |
| AT31013 | EXTENSION ARM | 6 |
| AT31015 | HORIZONTAL SIDE MOUNT PLATES SET OF 2 | 1 |
| AT31016 | 3" EXTENSION JACK BLOCK | 2 |
| AT31017 | 9" EXTENSION JACK BLOCK | 2 |
- Shipping F.O.B. from Holland, MI
- Dimensions : 1500 lbs, 56" x 44" x 31" (L x W x H)
| SKU | AT31000 |
|---|---|
| Service Bulletin | none |
